非常難得因?yàn)橐咔殪o態管理，免費獲得一天周五不需要上班的時間！高興?。∏岸螘r(shí)間翻到以前用MATLAB做的功放自動測試程序，覺得以前的自己是真的很NB?。∧墙裉炀碗S手?jǐn)]一篇。

搞電路設計必然繞不過的測試，使用儀器完成測試任務是必備技能。一些常規的，非重復性的測試任務可以手動完成，但如果需要完成大量的重復性測試，使用自動化測試手段就非常有必要了。絕大部分儀器都是支持編程控制的，幾個跟可編程儀器相關的概念包括：

VISA or "Virtual Instrument Software Architecture" is a standard library used to communicate to instruments. It's incorporated into Keysight Technologies "IO Suite" and also in National Instruments "Max". The library can be used by graphical and textual languages.The VISA standard includes specifications for communication with instruments over Test and Measurement-specific I/O interfaces such as GPIB, VXI, PXI, AXIe .... There are also specifications for T&M-specific protocols (computing) over PC-standard I/O, such as VXI-11 (over TCPIP) and USBTMC (over USB).The current standard, "VISA Specification 5.8", is maintained by the IVI Foundation. The complexity (communication protocol) of the different interfaces like: USB, LAN, PXI ... is solved in this library. So you can concentrate on the actual measurement task.

VISA即虛擬儀器軟件架構，將各類儀器、各種儀器的硬件接口（例如GPIB、VXI、PXI、PCI、USB、Serial、LAN（TCP/UDP）等全部抽象后統一起來，提供一套標準的軟件接口

SCPI or "Standard Commands for Programmable Instruments" is mainly used by "Keysight Technologies" instruments. The idea behind this standard is to create common commands for common tasks. SCPI promotes consistency, from the remote programming standpoint, between instruments of the same class and between instruments with the same functional capability. For a given measurement function such as frequency or voltage, SCPI defines the specific command set that is available for that function. Thus, two oscilloscopes made by different manufacturers could be used to make frequency measurements in the same way. It is also possible for a SCPI counter to make a frequency measurement using the same commands as an oscilloscope. SCPI commands are easy to learn, self-explanatory and account for both novice and expert programmer’s usage. Once familiar with the organization and structure of SCPI, considerable efficiency gains can be achieved during control program development, independent of the control program language selected.

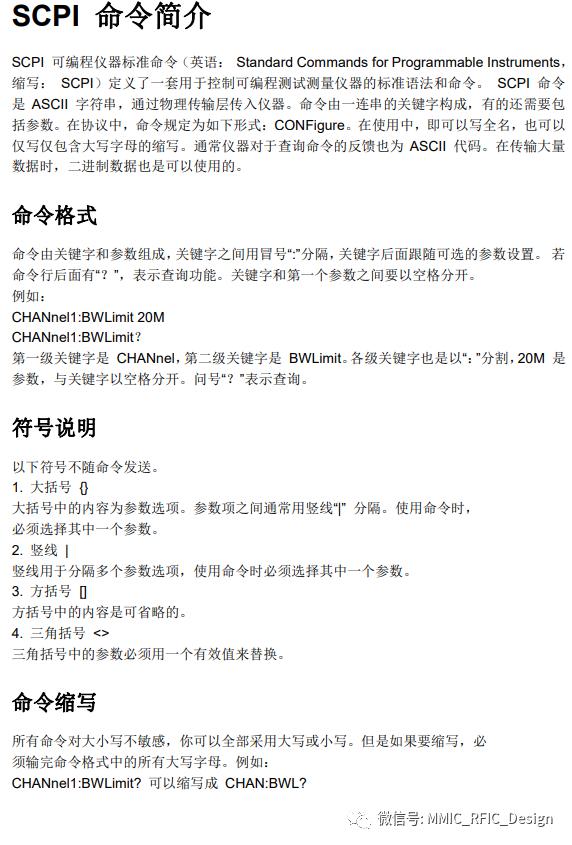

SCPI即可編程儀器的標準指令集，這是一個有二十多年歷史的老標準了，最初是為遠程傳感器控制設計的，使用ASCII碼字符串來定義指令（有點類似電信中的AT&T信令），后來被其他儀器采用逐漸得以發展。任何符合SCPI規范的可編程儀器至少包含以下通用指令集：

*IDN?  查詢?cè)O(shè)備ID*ESE *OPC*SRE?*RST  儀器復位*ESE?*OPC?*STB*CLS*ESR*SRE*TST?*WAI

除此之外，不同儀器根據需要再定義一些可選指令集。具體定義和語法參考https://www.ivifoundation.org/docs/scpi-99.pdf

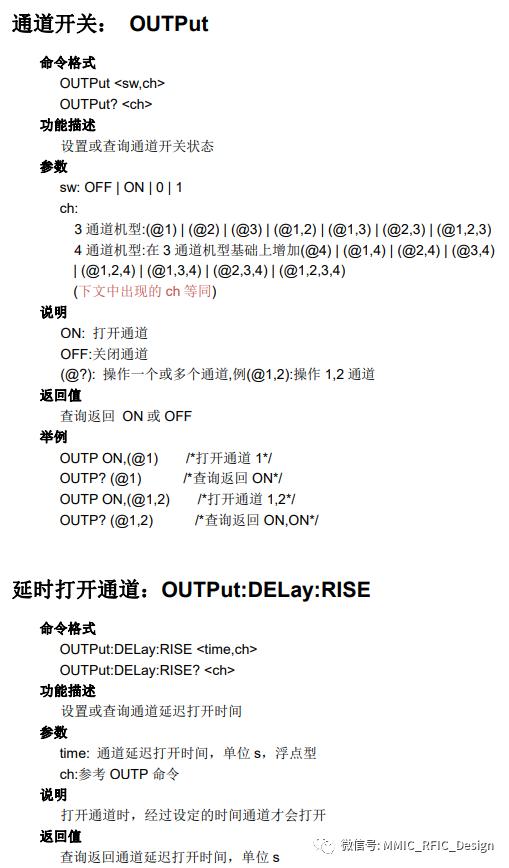

給儀器編程時，應該查看其對應的編程手冊，手冊里會給出詳細的指令格式和功能說明。

SICL or "Standard Instrument Control Library" is a standard library used to communicate with instruments. It's incorporated into Keysight's "IO Suite" and in National Instruments "Max". The library can be used by graphical and textual languages.SICL is a modular instrument communications library that works with a variety of computer architectures, I/O interfaces, and operating systems. Applications written in C/C++/C# or Visual BASIC using this library can be ported at the source code level from one system to another with no (or very few) changes.SICL uses standard, commonly used functions to communicate over a wide variety of interfaces. For example, a program written to communicate with a particular instrument on a given interface can also communicate with an equivalent instrument on a different type of interface.

SICL即標準儀器控制庫

IVI-COM actually consists of two standards. The IVI part represents the "Interchangeable Virtual Instruments".The COM part represents the "Component Object Model" defined by Microsoft.Systems designed using IVI-COM drivers enjoy the benefits of standardized code that can be interchanged into other systems. This code also supports interchange of measurement devices -- helping to prevent hardware obsolescence. Interchangeability is supported on three levels : The IVI architecture specifications allow architectural interchangeability -- that is a standard driver architecture that can be reused.The class specifications provide syntactic interchangeability which supports instrument exchange with minimal code changes.The highest level of interchangeability is achieved by using the IVI signal specifications.

IVI即可交換虛擬儀器，負責儀器接口的抽象統一；COM即微軟定義的組件對象模型，是一個獨立于平臺的分布式面向?qū)ο蟮南到y(tǒng)，用于創建可以交互的二進制軟件組件。

有了以上基本概念，來看使用MATLAB控制儀器有多么簡單：

首先確認安裝了驅動程序，例如Keysight的IO Library Suite，或者NI的VISA驅動，基本上是兼容的?？赏ㄟ^(guò)Keysight的Connection Expert搜索、查看、添加連接到計算機或者網絡上的儀器，獲取其設備ID。也可以使用MATLAB自帶的tmtool掃描可用的儀器：

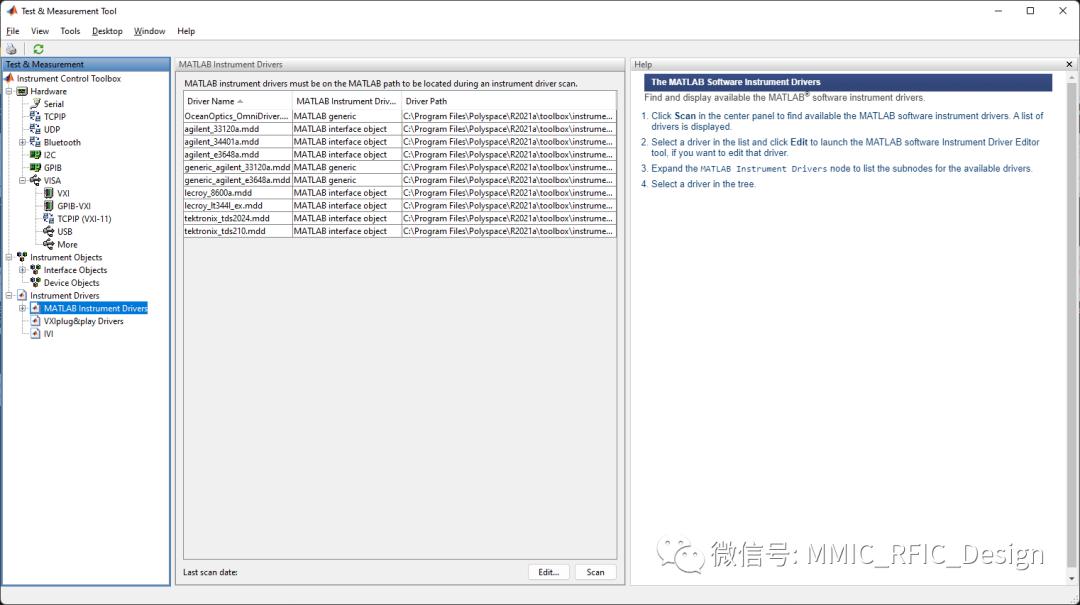

>> instrhwinfo ans =   HardwareInfo with properties:  MATLABVersion: '9.10 (R2021a)' SupportedInterfaces: {1×10 cell} SupportedDrivers: {'matlab'  'ivi'  'vxipnp'} ToolboxName: 'Instrument Control Toolbox' ToolboxVersion: '4.4 (R2021a)' Access to your hardware may be provided by a support package. Go to the Support Package Installer to learn more.

例如比較常見的ITECH直流電源，低端的只支持RS232串口，假設使用計算機的COM1口連接到電源，則使用以下代碼：

ps=serial('com1',9600);%創建串口對象fopen(ps);%打開串口，與儀器建立連接fprintf(ps,'*IDN?');%發送SCPI指令詢問儀器ID號id=fscanf(ps,'%s');%讀取儀器回復的ID號fprintf('已連接到儀器:%s\n',id);%打印儀器 ID號

又例如創建通過串口連接的NI儀器對象，假設設備地址是'ASRL1::INSTR'：

vs = visa('ni','ASRL1::INSTR');%創建儀器對象fopen(vs);%連接到儀器

GPIB、VXI、TCPIP、USB等全都類似：

vg = visa('keysight','GPIB0::1::30::INSTR');

vv = visa('keysight','VXI0::8::INSTR');

vt = visa('tek', 'TCPIP::216.148.60.170::INSTR')

vu = visa('keysight', 'USB::0x1234::125::A22-5::INSTR')

fopen(vs);%打開儀器對象fprintf(vs,'SCPI Command');%標準輸出fscanf(vs,'format',...);%標準輸入fread(vs,size,precision);%二進制讀fwrite(vs,data,precision);%二進制寫fclose(vs);%關閉儀器對象

usbdev = visadev("USB0::0x0699::0x036A::CU010105::0::INSTR");%創建USB虛擬儀器對象writeline(usbdev,"*IDN?");%發送SCPI指令id = readline(usbdev);%讀取指令返回值

serialdev = visadev("COM1");%創建串口儀器對象id = writeread(serialdev,"*IDN?");%發送SCPI指令并讀取返回值

serialdev = visadev("ASRL1::INSTR");

tcpdev = visadev("TCPIP0::169.254.2.20::inst0::INSTR");

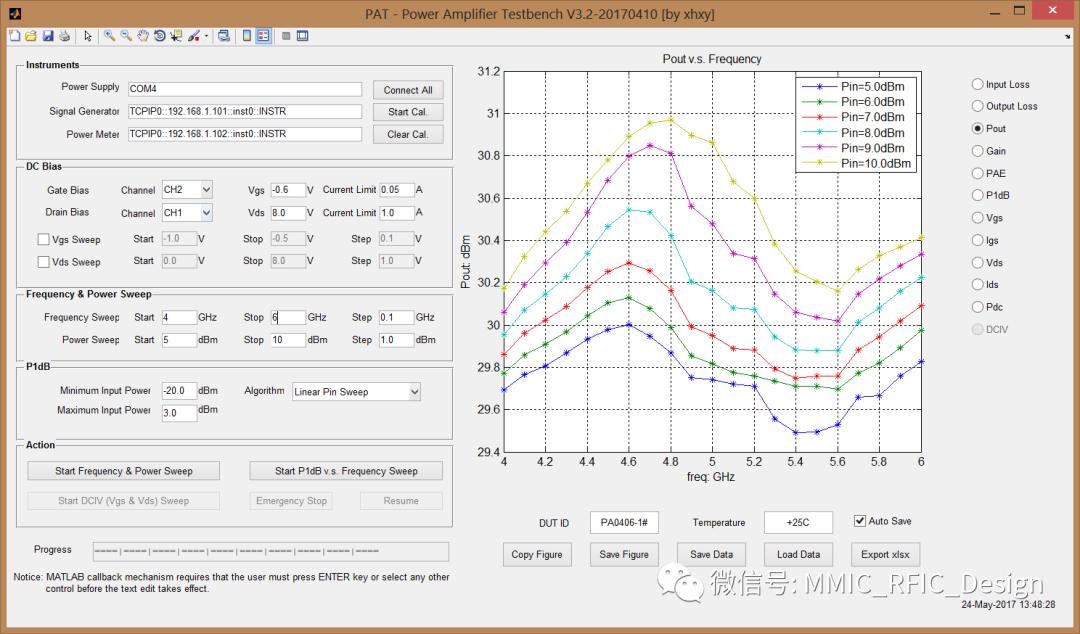

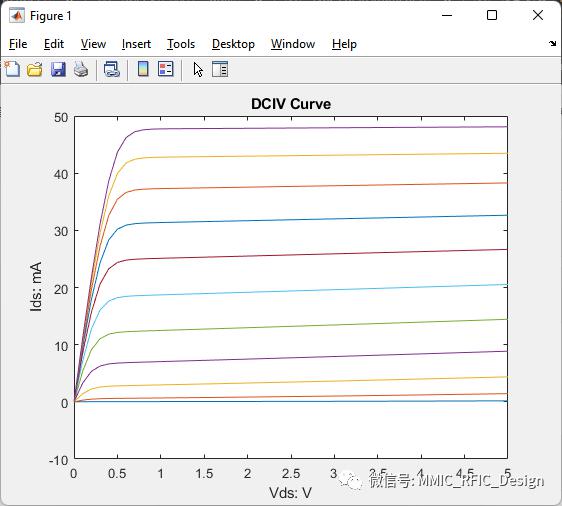

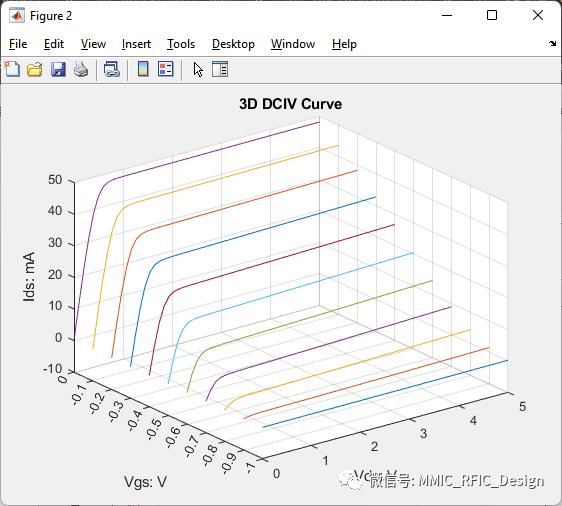

ps=serial('COM1',9600); fopen(ps);fprintf(ps,'*IDN?\n');%查詢儀器是否在線str=fscanf(ps,'%s');fprintf('DC Power Supply:\t%s\n',str);if(isempty(str)) msgbox('連接直流電源失敗'); fclose(ps); return;endfprintf(ps,'SYST:REM\n');%遠程控制模式fprintf(ps,'OUTP OFF\n');%關閉輸出fprintf(ps,'INST CH1\n');%選擇通道1（柵壓）fprintf(ps,'VOLT 2V\n');%設置電壓（柵壓-2V）fprintf(ps,'CURR 0.001A\n');%設置最大電流fprintf(ps,'CHAN:OUTP ON\n');%開啟柵壓輸出pause(1);%等待柵壓開啟1s后再開啟漏壓fprintf(ps,'INST CH2\n');%選擇通道2（漏壓）fprintf(ps,'VOLT 0V\n');%設置電壓（漏壓0V）fprintf(ps,'CURR 0.1A\n');%設置最大電流fprintf(ps,'CHAN:OUTP ON\n');%開啟漏壓輸出vgg = -2:0.1:0;%柵壓掃描范圍-2~0V，步進0.1Vvdd = 0:0.5:5;%漏壓掃描范圍0~5V,步進0.5Vvgs=zeros(length(vgg),length(vdd));%初始化柵電壓測量結果vds=zeros(length(vgg),length(vdd));%初始化漏電壓測量結果igs=zeros(length(vgg),length(vdd));%初始化柵電流測量結果ids=zeros(length(vgg),length(vdd));%初始化漏電流測量結果for i=1:length(vgg)%柵壓掃描 fprintf(ps,'INST CH1\n');%選擇通道1 fprintf(ps,'VOLT %fV\n',abs(vgg(i)));%設置柵壓 fprintf(ps,'INST CH2\n');%選擇通道2 for j=1:length(vdd)%漏壓掃描 fprintf(ps,'VOLT %sV\n',vdd(j));%設置漏壓 fprintf(ps,'MEAS:VOLT? ALL\n');%測量三個通道實際輸出電壓 dat=fscanf(ps,'%E, %E, %E');%讀回三個通道實際輸出電壓 vgs(i,j)=dat(1);%CH1是vgs vds(i,j)=dat(2);%CH2是vds fprintf(ps,'MEAS:CURR? ALL\n');%測量三個通道實際輸出電流 dat=fscanf(ps,'%E, %E, %E');%讀回三個通道實際輸出電流 igs(i,j)=dat(1);%CH1是igs ids(i,j)=dat(2);%CH2是ids endendfprintf(ps,'INST CH2\n');fprintf(ps,'CHAN:OUTP OFF\n');%先關漏壓pause(0.5);%等待0.5sfprintf(ps,'INST CH1\n');fprintf(ps,'CHAN:OUTP OFF\n');%后關柵壓 figure,plot(vds',1000*ids')title('DCIV Curve')xlabel('Vds: V');ylabel('Ids: mA'); figure,plot3(vds',vgs',1000*ids)title('3D DCIV Curve')xlabel('Vds: V');ylabel('Vgs: V');zlabel('Ids: mA');set(gca,'YTick',-1:0.1:0)grid on
