基于FPGA的多級CIC濾波器實現四倍抽取三

在《基于FPGA的多級CIC濾波器實現四倍抽取一》和《基于FPGA的多級CIC濾波器實現四倍抽取二》中我們先來了解滑動平均濾波器、微分器、積分器以及梳狀濾波器原理以及它們的幅頻響應。在三中我們將用verilog實現基于FPGA的多級CIC濾波器實現四倍抽取。

1 CIC濾波器的基本概述

CIC（積分梳狀）濾波器是無線通信中的常用模塊，一般用于數字下變頻（DDC）和數字上變頻（DUC）系統。CIC濾波器結構簡單，只有加法器、積分器和寄存器，適合于工作在搞采樣率條件下，而且CIC濾波器是一種基于零點相消的FIR濾波器，已經被證明是在高速抽取或插值系統中非常有效的單元。

2 matlab實現CIC濾波器的四倍抽取

設計目標：將載波頻率352.8khz的1khz sine降采樣率到88.2khz。

close all

clear all

clc

%set system parameter

fs = 1000; %The frequency of the local oscillator signal

Fs = 352800; %sampling frequency

Fs1 = 88200;

N =  24; %Quantitative bits

L = 81920;

%Generating an input signal

t =0:1/Fs:(1/Fs)*(L-1); %Generating the time series of sampling frequencies

sc1 =sin(2*pi*fs*t); %a sinusoidal input signal that produces a random starting phase

sc2 =sin(2*pi*Fs*t); %a sinusoidal input signal that produces a random starting phase

sc = sc1 +sc2;

%滑動平均濾波器

b =[1,-1];%comb

a =[1,-1];%integerator

i1 =filter(1,a,sc);

i2 =filter(1,a,i1);

i3 =filter(1,a,i2);

y = downsample(i3,4);%decimate

c1=filter(b,1,y);

c2=filter(b,1,c1);

c3=filter(b,1,c2);

sf = c3./64;

f_osc =fft(sc,L);

f_osc=20*log(abs(f_osc))/log(10); %換算成dBW單位

ft1=[0:(Fs/L):Fs/16]; %轉換橫坐標以Hz為單位

f_osc=f_osc(1:length(ft1));

f_o =fft(sf,L);

f_o=20*log(abs(f_o))/log(10); %換算成dBW單位

ft2=[0:(Fs1/L):Fs1/4]; %轉換橫坐標以Hz為單位

f_o=f_o(1:length(ft2));

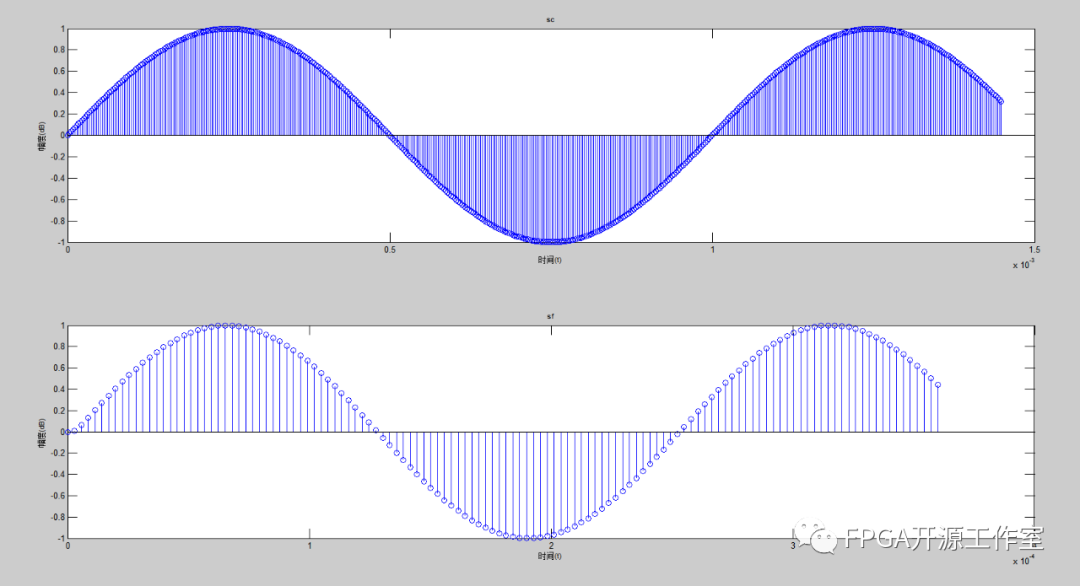

figure(1),

subplot(211),stem(t(1:512),sc(1:512));

xlabel('時間','fontsize',8);

ylabel('幅度(dB)','fontsize',8);

title('sin_osc','fontsize',8);

subplot(212),stem(t(1:128),sf(1:128));

xlabel('時間','fontsize',8);

ylabel('幅度(dB)','fontsize',8);

title('sf','fontsize',8);

figure(2),

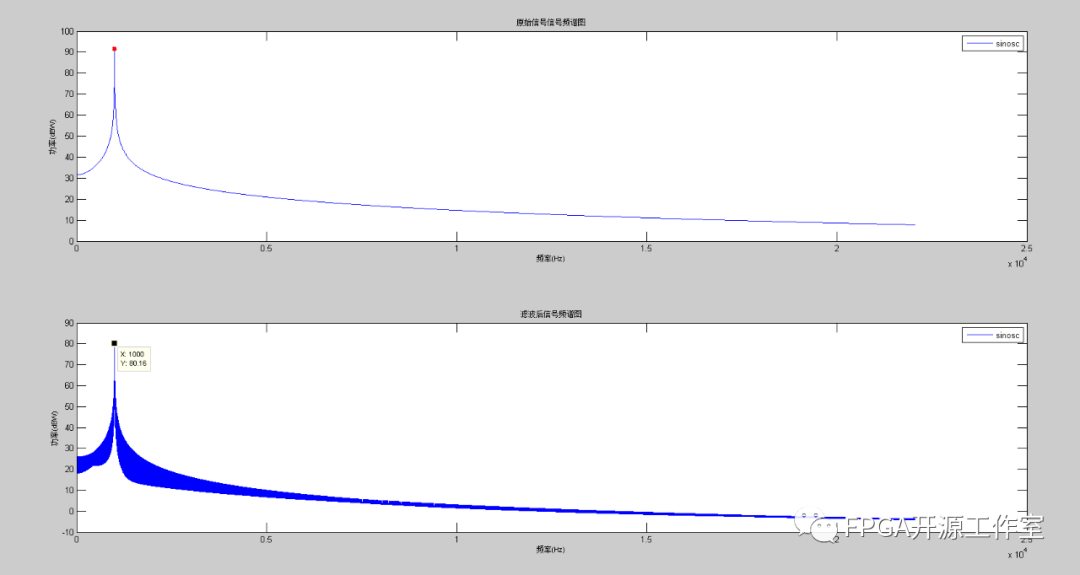

subplot(211),plot(ft1,f_osc);

xlabel('頻率(Hz)','fontsize',8); ylabel('功率(dBW)','fontsize',8);

title('原始信號信號頻譜圖','fontsize',8);legend('sinosc');

subplot(212),plot(ft2,f_o);

xlabel('頻率(Hz)','fontsize',8); ylabel('功率(dBW)','fontsize',8);

title('濾波后信號頻譜圖','fontsize',8);legend('sinosc');

3 FPGA實現CIC濾波器的四倍抽取

FPGA設計：FPGA由i2s輸入352.8khz的1khz sine（當然也可以是歌曲352.8khz采樣率），經過i2s串轉并后經過mult_cic模塊進行采樣率下降處理（變成88.2khz 1khz sine或者歌曲），再通過i2s_tx_master并轉串送到DAC 。

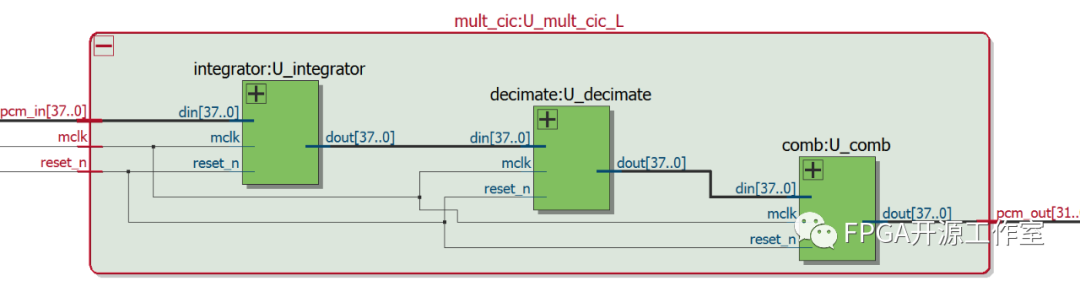

多級CIC濾波器的結構主要由積分器+抽值+梳狀濾波器構成。

FPGA代碼：

`timescale 1ps/1ps module mult_cic#(parameter DW = 38)( input mclk,//45.1584MHZ input reset_n, input signed[DW-1:0] pcm_in,//352.8khz output signed[31:0] pcm_out //88.2khz ); wire signed [DW-1:0]integrator_temp;wire signed [DW-1:0]    decimate_temp;wire signed [DW-1:0]    comb_temp;  integrator#(.DW(38)) U_integrator( .mclk(mclk), .reset_n(reset_n), .din(pcm_in), .dout(integrator_temp) ); decimate#(.DW(38)) U_decimate( .mclk(mclk), .reset_n(reset_n), .din(integrator_temp), .dout(decimate_temp) ); comb#(.DW(38)) U_comb( .mclk(mclk), .reset_n(reset_n), .din(decimate_temp), .dout(comb_temp) ); //divideassign pcm_out = comb_temp[37:6]; endmodule module integrator#(parameter DW = 38)( input                mclk, input                reset_n, input  signed [DW-1:0] din, output signed [DW-1:0] dout ); localparam LAST_CYCLE = 128;reg [6:0] i; reg signed [DW-1:0] temp_xin1,temp_xin2,temp_xin3;wire signed [DW-1:0] i1_temp,i2_temp,i3_temp;  always @(posedge mclk or negedge reset_n) begin if(reset_n == 1'b0) i <= 0; else i<= i+1;end always @(posedge mclk or negedge reset_n) begin //The first level integrator if(reset_n == 1'b0) temp_xin1 <= 0; else if(i == (LAST_CYCLE-1)) temp_xin1 <= i1_temp;end assign i1_temp = (reset_n == 1'b0)?38'b0:( din + temp_xin1); always @(posedge mclk or negedge reset_n) begin //The second level integrator if(reset_n == 1'b0) temp_xin2 <= 0; else if(i == (LAST_CYCLE-1)) temp_xin2 <= i2_temp;end assign i2_temp = (reset_n == 1'b0)?38'b0:( i1_temp + temp_xin2); always @(posedge mclk or negedge reset_n) begin //The third level integrator if(reset_n == 1'b0) temp_xin3 <= 0; else if(i == (LAST_CYCLE-1)) temp_xin3 <= i3_temp;end assign i3_temp = (reset_n == 1'b0)?38'b0:( i2_temp + temp_xin3); assign dout = i3_temp;  endmodule module decimate#(parameter DW = 38)( input                mclk, input                reset_n, input  signed [DW-1:0] din, output signed [DW-1:0] dout ); localparam LAST_CYCLE = 512;reg [8:0] i;//88.2 reg signed [DW-1:0] dout_pcm; assign dout = dout_pcm; always @(posedge mclk or negedge reset_n) begin if(reset_n == 1'b0) begin i <= 0;dout_pcm<=0; end else begin i<= i+1;if(i == (LAST_CYCLE-1)) begin dout_pcm<=din; //downsmple(x,n)--n--4end endend endmodule module comb#(parameter DW = 38)( input                mclk, input                reset_n, input  signed [DW-1:0] din, output signed [DW-1:0] dout ); localparam LAST_CYCLE = 512;reg [8:0] i;//88.2 reg signed [DW-1:0] d1,d2,d3,d4;wire signed [DW-1:0] c1,c2; always @(posedge mclk or negedge reset_n) begin if(reset_n == 1'b0) begin i <= 0;d1 <=0;d2 <=0;d3 <=0;d4 <=0; end else begin i<= i+1;if(i == (LAST_CYCLE-1)) begin d1<=din; d2<=d1; d3<=c1; d4<=c2;end endend assign c1 = (reset_n ==1'b0)?38'b0:(d1-d2);//comb1assign c2 = (reset_n ==1'b0)?38'b0:(c1-d3);//comb2assign dout =(reset_n ==1'b0)?38'b0:(c2-d4);//comb3 endmodule

FPGA仿真:

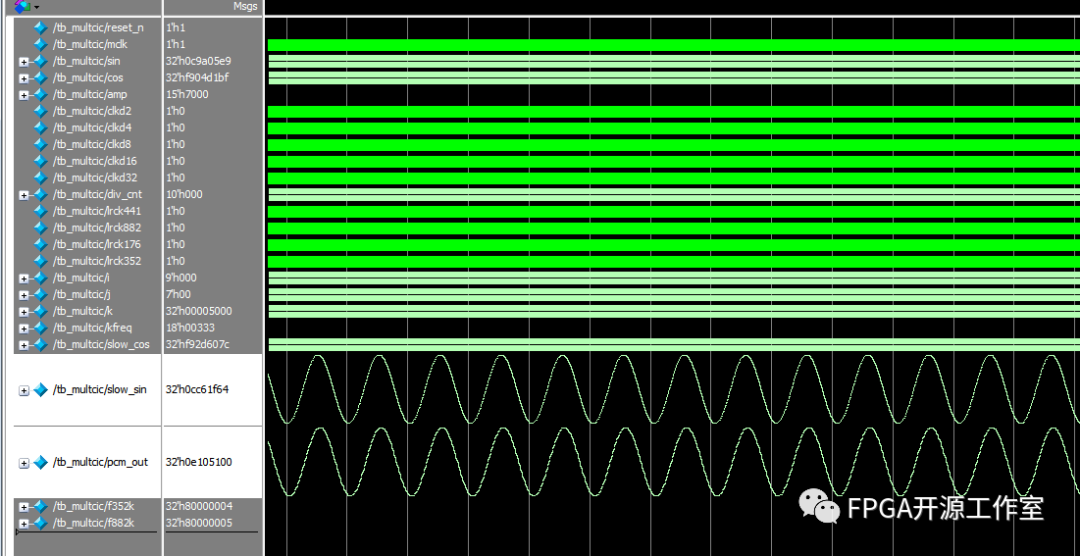

仿真輸入1khz sine輸出依然為1khz sine，設計成功。
